Why Radiopharmaceutical and Isotope Production Matters to Modern Medicine
Radiopharmaceutical and isotope production sits at the intersection of nuclear physics, chemistry, and medicine — and it powers over 50 million medical procedures every year worldwide.
Here is a quick overview of what you need to know:
- What they are: Radiopharmaceuticals are drugs that contain a radioactive isotope linked to a targeting molecule. They are used to image or treat disease from inside the body.
- How isotopes are made: Radioisotopes are produced in nuclear research reactors or particle accelerators (cyclotrons), then chemically processed and attached to targeting molecules.
- Key isotopes: Technetium-99m (Tc-99m) alone accounts for about 80% of all nuclear medicine diagnostic scans worldwide. Others include F-18, Lu-177, and Ac-225.
- Manufacturing steps: Isotope generation to radiolabeling to quality control to fill-finish and delivery.
- Core challenge: Radioisotopes begin decaying the moment they are made. Some have half-lives measured in hours, so the entire production and delivery process runs on a tight clock.
- Regulatory standards: Facilities must meet FDA GMP requirements, NRC licensing, and strict radiation safety protocols.
These drugs are not like ordinary pharmaceuticals. A conventional drug can sit on a shelf for years. A radiopharmaceutical might be inert by tomorrow morning.
That urgency shapes everything — how facilities are designed, how supply chains are structured, and how manufacturing is managed.
Over 10,000 hospitals worldwide use radioisotopes in medicine, and demand is growing. New therapies targeting cancers like metastatic prostate cancer have drawn billions in investment from major pharmaceutical companies. And the infrastructure needed to produce these isotopes — reactors, cyclotrons, hot cells, shielded transport systems — is both specialized and expensive.
I'm Nicholas Cunha, founder of CreatiVertical, where I help technical and industrial manufacturers communicate complex, compliance-sensitive topics clearly — including content developed for companies operating in regulated environments like radiopharmaceutical and isotope production and related nuclear industry applications. In the sections ahead, we'll walk through each stage of the process in plain language, with enough technical depth to be genuinely useful to engineers, procurement teams, and facility managers.
The Fundamentals of Radiopharmaceutical and Isotope Production
To understand how these unique medical tools are made, I find it easiest to start with their anatomy. Unlike a standard aspirin tablet, which relies purely on its chemical structure to interact with your biology, a radiopharmaceutical is a hybrid entity.
It consists of two primary components:
- The Radioisotope: A radioactive atom that acts as the energy source. It continuously decays, emitting radiation (like gamma rays, alpha particles, or beta particles) that can either be detected by external cameras or used to destroy diseased tissue.
- The Targeting Molecule (or Ligand): A chemical compound—often a peptide, small molecule, or monoclonal antibody—engineered to bind to specific receptors on target cells, such as cancer cells.
Together, they form a highly targeted delivery vehicle. The targeting molecule navigates through the bloodstream to find the disease, and the radioisotope delivers the payload—either diagnostic light or therapeutic energy.
What Are Radiopharmaceuticals?
In my work with technical processes, I often describe these drugs as active pharmaceutical ingredients (APIs) with a built-in timer. Because they rely on radioactive decay, they are constantly changing.
The fundamental process of Scientific overview of radiopharmaceutical production involves synthesizing these compounds under strict sterile conditions while protecting operators from radiation. Unlike conventional pharmaceuticals, where a batch can be manufactured in large quantities, packaged, and stored in a warehouse, radiopharmaceutical manufacturing is a continuous, highly synchronized race against physics. The biological characteristics of the targeting molecule ensure the drug accumulates only where it is needed, minimizing damage to surrounding healthy tissues.
Diagnostic vs. Therapeutic Applications
Not all radiation is created equal. Depending on the type of decay and particle emitted, a radiopharmaceutical is classified as either diagnostic or therapeutic.
- Diagnostic Radiopharmaceuticals: These emit penetrating radiation, primarily gamma rays or positrons. This radiation passes easily out of the patient's body, where it is captured by specialized cameras to create detailed 3D images. Single-Photon Emission Computed Tomography (SPECT) and Positron Emission Tomography (PET) are the primary imaging modalities used.
- Therapeutic Radiopharmaceuticals: These utilize short-range, highly destructive radiation, specifically alpha or beta particles. Because these particles have low tissue penetration, they deposit their energy within a very small radius (often just a few cell widths), destroying the DNA of cancer cells while sparing nearby healthy tissue.
| Radioisotope | Decay Type | Primary Application | Clinical Use Example |
|---|---|---|---|
| Technetium-99m (Tc-99m) | Gamma (SPECT) | Diagnostic | Bone scans, cardiac perfusion |
| Fluorine-18 (F-18) | Positron (PET) | Diagnostic | Oncology (FDG-PET scans) |
| Lutetium-177 (Lu-177) | Beta / Gamma | Therapeutic / Diagnostic | Prostate cancer, NETs |
| Actinium-225 (Ac-225) | Alpha | Therapeutic | Targeted Alpha Therapy (TAT) |
Primary Methods of Medical Radioisotope Generation
Before we can label a drug, we must first manufacture the radioisotope. This is where big-iron physics enters the picture. In the United States, we rely on two primary methods of nuclear transmutation to produce these raw materials: nuclear research reactors and particle accelerators (such as cyclotrons).
Reactor vs. Accelerator Methods in Radiopharmaceutical and Isotope Production

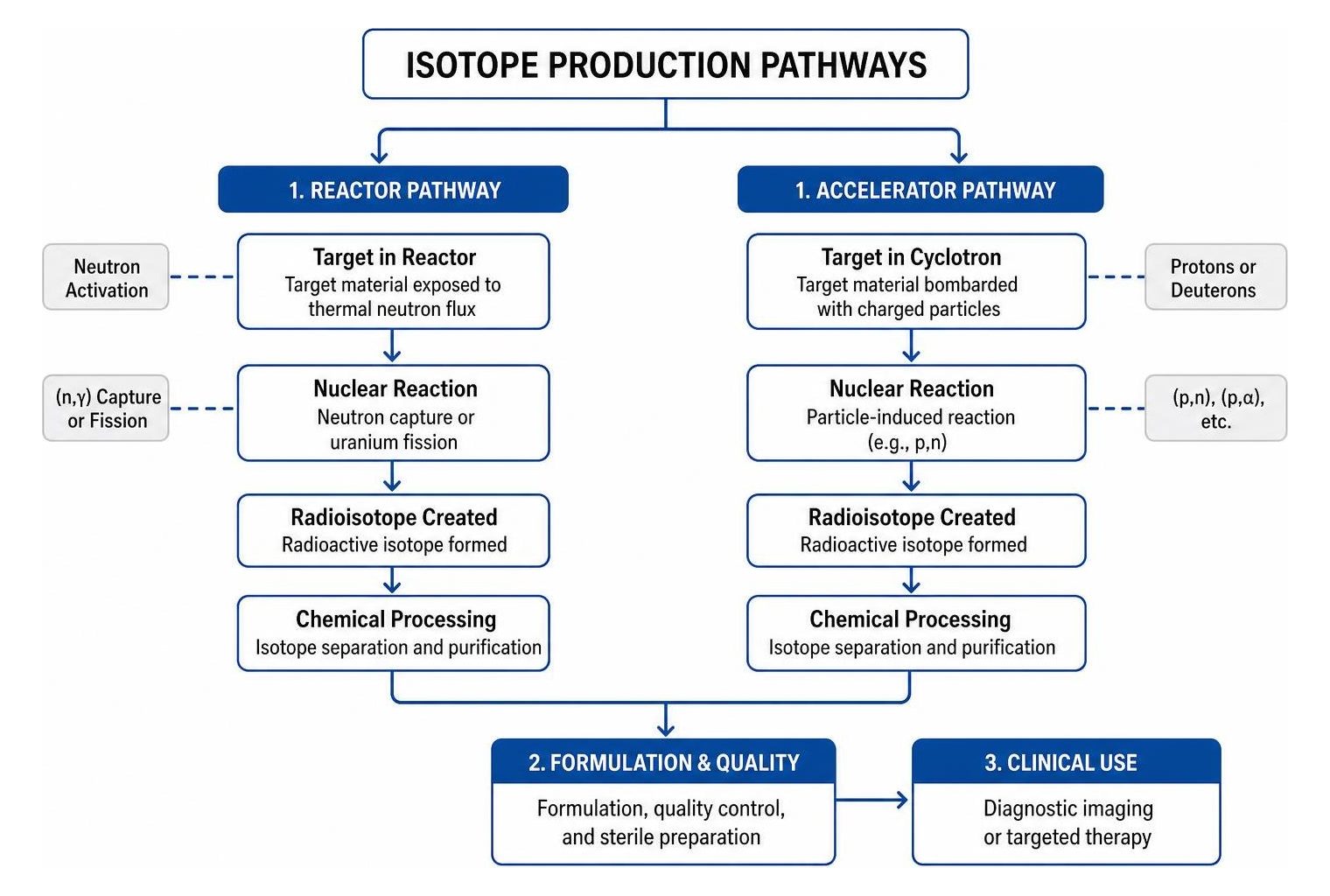

Nuclear reactors and particle accelerators produce isotopes using completely different physical processes.
Nuclear reactors excel at producing neutron-rich isotopes. Inside a reactor core, target materials are exposed to intense thermal neutron flux. Through a process called neutron activation (or neutron capture), target nuclei absorb neutrons to become heavier, unstable isotopes. Reactors also generate isotopes through the fission of uranium targets (typically low-enriched uranium, or LEU, to meet modern non-proliferation standards).
In contrast, accelerators and cyclotrons are used to produce proton-rich isotopes. These machines accelerate charged particles—such as protons or deuterons—to high kinetic energies and smash them into a target. This proton bombardment knocks neutrons or other particles out of the target nuclei, transforming them into the desired radioisotopes.
For a deep dive into reactor mechanics, the IAEA's Technical manual for reactor-produced radioisotopes outlines the exact activation equations, self-shielding corrections, and target geometries used to optimize yields.
Commonly Used Medical Radioisotopes
The global medical community relies on a handful of workhorse isotopes.
- Technetium-99m (Tc-99m): The absolute king of diagnostics, accounting for roughly 80% of all nuclear medicine procedures. It has a convenient 6-hour half-life and is generated on-site at hospitals using Molybdenum-99 (Mo-99) generators.
- Fluorine-18 (F-18): The standard for PET imaging. With a half-life of 110 minutes, it is produced daily in regional cyclotron facilities and rushed to nearby imaging centers.
- Lutetium-177 (Lu-177): A beta-emitter that has revolutionized the treatment of late-stage prostate cancer and neuroendocrine tumors (NETs).
The Radiopharmaceutical Manufacturing Process
Once the raw radioisotope is harvested, it must undergo chemical processing and formulation to become an injectable drug. This process takes place in highly controlled cleanrooms inside specialized containment chambers known as hot cells.
Radioisotope Generation and Radiolabeling
The core chemical step is radiolabeling. Because we are dealing with high-energy radiation, manual pipetting is out of the question. Instead, we use automated synthesis modules—robotic fluidic systems controlled by software—to perform the chemistry.
The radioisotope is chemically bonded to the targeting ligand. For metal isotopes like Lutetium-177 or Actinium-225, this requires a chelating agent (such as DOTA or Macropa). The chelator acts as a chemical "cage" that tightly holds the radioactive metal atom, while another part of the molecule bonds to the targeting monoclonal antibody or peptide.
For those interested in cyclotron chemistry, the Research on cyclotron-based radionuclide production highlights the target engineering and automated separation modules required to achieve high specific activity without stable isotopic contamination.
Quality Control and Fill-Finish Operations
Because these drugs are injected directly into patients, they must meet extreme purity and safety standards. However, because the product is decaying rapidly, quality control (QC) must be completed in a fraction of the time required for normal drugs.
QC testing includes:
- Radiochemical Purity: Ensuring the isotope is actually bound to the targeting molecule, rather than floating free in the solution.
- Sterility and Endotoxin Testing: Verifying the absence of microbial contamination. Due to time constraints, rapid, automated endotoxin tests are used, and some sterility tests are completed retrospectively after the drug has been shipped.
- pH and Osmolality: Confirming the formulation is safe for intravenous injection.
Once cleared, automated dispensing systems dose the drug into shielded vials or syringes during the "fill-finish" phase.
Regulatory Compliance and Facility Design
Operating a radiopharmaceutical and isotope production facility requires balancing two opposing regulatory forces: keeping the drug completely sterile (which requires positive pressure cleanrooms) and keeping the radiation completely contained (which requires negative pressure containment).
Facility Design Standards for Radiopharmaceutical and Isotope Production
To manage this balance, facilities use a nested containment strategy. The highest radiation areas—the hot cells—are kept under negative pressure relative to the surrounding room. This ensures that if a leak occurs, air flows inward, preventing radioactive gases or particulates from escaping.
Airflow throughout the facility is strictly unidirectional, moving from clean zones to progressively more contaminated zones. Heavy shielding is built directly into the facility structure, utilizing thick concrete walls, lead-lined hot cells, and lead-doped viewing glass.
For a structural look at how these spaces are organized, you can review the Overview of a standard radioisotope production facility.
Regulatory Frameworks and GMP Compliance
In the United States, facilities are overseen by multiple regulatory bodies:
- The FDA: Enforces Current Good Manufacturing Practices (cGMP) to ensure drug safety, sterility, and efficacy.
- The NRC (Nuclear Regulatory Commission): Oversees radiation safety, licensing of radioactive materials, and facility shielding.
- State-level Departments of Health: Manage local licensing and transport compliance.
Every facility must employ dedicated Radiation Safety Officers (RSOs) to enforce ALARA (As Low As Reasonably Achievable) principles, ensuring that operator exposure to radiation is kept to an absolute minimum through the smart use of time, distance, and shielding.
Supply Chain Logistics and Emerging Trends
The logistics of radiopharmaceuticals are often compared to shipping a melting ice cube. If you experience a shipping delay with a traditional drug, you lose some shelf life. If you experience a shipping delay with a short-lived radiopharmaceutical, the drug literally disappears.
Managing the "Melting Ice Cube" Supply Chain
Because of rapid radioactive decay, there is no such thing as warehousing finished products. Production operates on a just-in-time model.
For example, Fluorine-18 has a half-life of 110 minutes. If a batch is produced at 4:00 AM, it must be packaged, quality-tested, loaded onto dedicated transport vehicles, and delivered to the hospital in time for a patient's 8:00 AM scan. Even for longer-lived isotopes like Lutetium-177 (half-life of 6.7 days), transit times must be tightly managed to minimize decay in transit. Transport must comply with strict Department of Transportation (DOT) regulations for hazardous materials, requiring specialized, heavily shielded Type A or Type B shipping containers.
Targeted Alpha Therapy and Theranostics
The cutting edge of nuclear medicine is Targeted Alpha Therapy (TAT) and Theranostics.
Theranostics pairs a diagnostic isotope with a therapeutic isotope on the exact same targeting molecule. For example, a doctor might use Gallium-68 to image and locate a tumor, and then switch the isotope to Lutetium-177 or Actinium-225 to destroy that exact same tumor.
To support these advanced therapies, domestic production is expanding rapidly. For instance, the Department of Energy’s Brookhaven Linac Isotope Producer (BLIP) is scaling up accelerator-produced Actinium-225 to increase global supply over 100-fold. You can read more about these efforts via the Information on accelerator-produced Actinium-225.
Right here in Michigan, private industry is stepping up to meet this demand. Companies like Niowave have invested tens of millions of dollars to construct advanced isotope production plants in the state, specifically targeting the domestic production of Actinium-225 to secure the U.S. supply chain and reduce reliance on foreign research reactors.
Frequently Asked Questions about Isotope Manufacturing
What is the difference between a cyclotron and a nuclear reactor for isotope production?
A nuclear reactor uses neutron activation (neutron capture) within a fission environment to produce neutron-rich isotopes (like Mo-99 or Lu-177). A cyclotron uses electromagnetic fields to accelerate protons and smash them into target materials, producing proton-rich isotopes (like F-18 or Zr-89). Cyclotrons typically produce isotopes with higher specific activity.
Why do radiopharmaceuticals have such a short shelf life?
Their shelf life is dictated by the radioactive half-life of the isotope. Because isotopes decay exponentially, a drug with a short half-life (like F-18's 110 minutes) loses its potency within hours. Immediate patient administration is required because the drug physically transforms into a stable, non-radioactive element over time.
What are the primary safety measures in a radiopharmaceutical facility?
Facilities rely on heavy shielding (lead, concrete, and depleted uranium), negative-pressure hot cells, automated remote manipulators to handle chemicals, continuous radiation monitoring systems, and strict personal protective equipment (PPE) protocols to keep worker exposure as low as reasonably achievable (ALARA).
Conclusion
The production of radiopharmaceuticals and isotopes is a masterclass in precision engineering. It requires managing the delicate chemistry of life-saving drugs while controlling the high-energy physics of radioactive decay.
