Certified Graphite in the Nuclear Industry Starts With Proof
For the certified graphite nuclear industry, qualification is more than a high carbon-content claim. Buyers need a documented material pedigree that connects the finished component or graphite-based product to its raw materials, chemical testing, manufacturing lot, inspection records, and applicable nuclear quality program.
At a minimum, confirm:
- Application-specific code compliance - Core graphite components may fall under ASME Section III, Division 5 requirements, while other nuclear-service products can require separate material and plant specifications.
- Verified chemistry - Nuclear moderator graphite commonly needs very low neutron-absorbing impurities. ASTM C1233-98 is used to determine boron content, and many applications specify boron equivalent below 5 ppm.
- Physical-property qualification - Density, porosity, grain structure, strength, and dimensional stability must match the operating environment.
- Lot-level traceability - Require certified material test reports, batch chemical assays, controlled machining records, and chain-of-custody documentation.

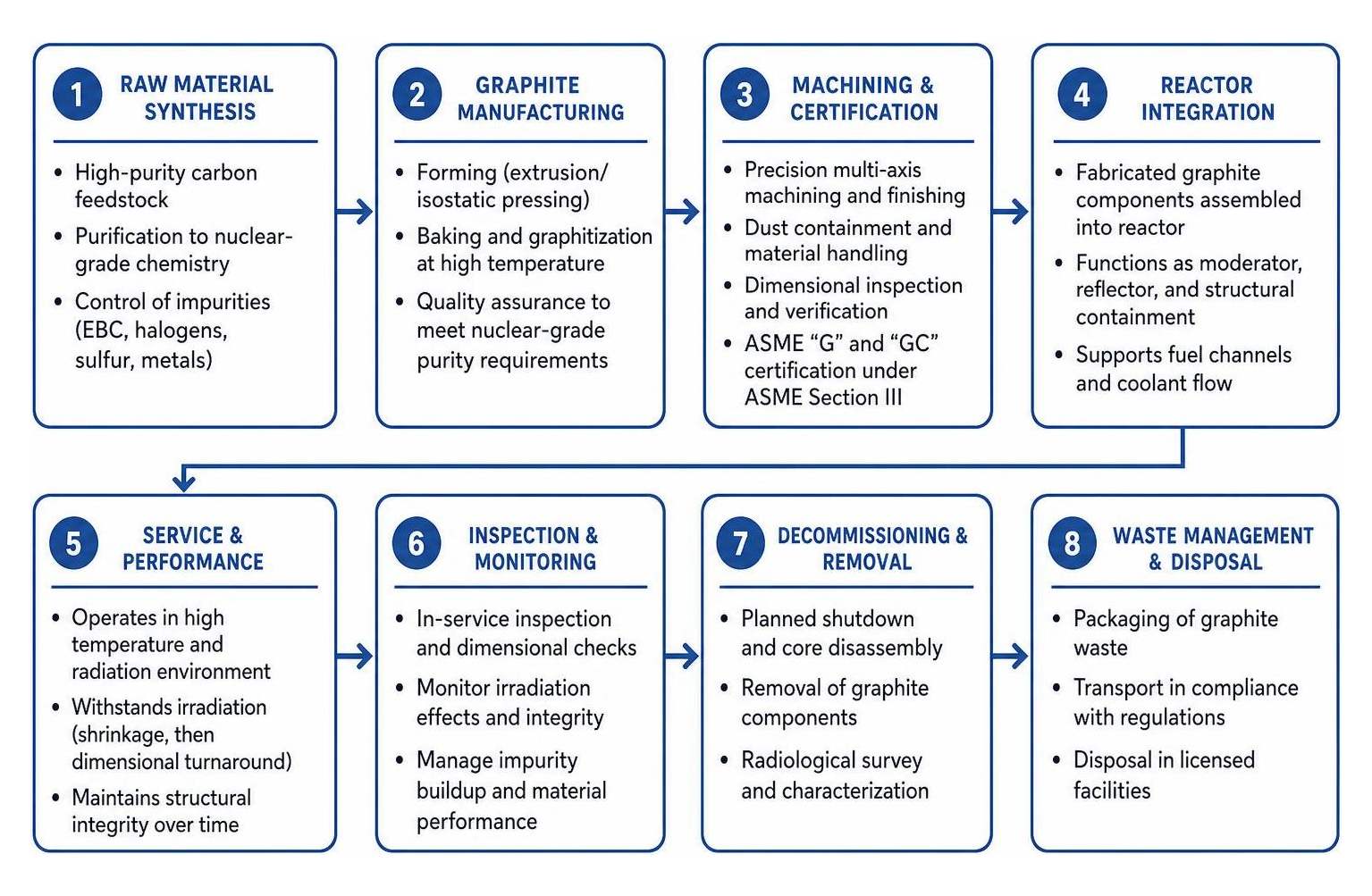

- Lifecycle evidence - The qualification file should address irradiation, oxidation, inspection access, and eventual waste characterization - not just incoming material acceptance.
Graphite can moderate neutrons, reflect them back into the core, support fuel and coolant channels, and serve in high-temperature seals, packings, and anti-seize applications. But the same word, graphite, covers materials with very different purity, structure, and nuclear suitability. A product that is acceptable for industrial heat service is not automatically acceptable near a reactor system.
This guide explains the standards, testing, supply controls, and aging questions procurement and engineering teams should resolve before approving graphite for nuclear use.
I am Nicholas Cunha, founder of CreatiVertical and a technical B2B content specialist working with Huron Industries Inc. on compliance-aware information for high-specification industrial materials. My work in the certified graphite nuclear industry focuses on helping engineering and procurement buyers understand the documentation, material controls, and traceability behind products they need to qualify.
Handy certified graphite nuclear industry terms:
Standards and Codes for the Certified Graphite Nuclear Industry
Procuring structural core blocks or graphite consumables for high-temperature nuclear applications requires navigating strict compliance frameworks. When evaluating core structural components, the governing baseline is the ASME Boiler and Pressure Vessel Code (BPVC) Section III, Division 5, which covers high-temperature reactors. Specifically, Subsection HHA outlines the design, fabrication, and construction rules for nonmetallic core components.
Material characterization must align with ASTM standards. ASTM C781 provides the standard guide for testing materials for high-temperature gas-cooled nuclear reactor components, while ASTM D7219 sets the standard specification for isotropic and near-isotropic nuclear-grade graphite. Comprehensive qualification involves rigorous baseline testing of thermal expansion, compressive strength, flexural properties, and irradiation-induced dimensional changes. For engineers evaluating commercial readiness, reviewing an EPRI technical evaluation on nuclear graphite readiness offers critical insight into bridging testing data with real-world deployments. Meeting these benchmarks demands disciplined quality systems, making it essential to understand how to ensure nuclear grade material traceability in your supply chain.
ASME Section III G and GC Stamps for the Certified Graphite Nuclear Industry
To manufacture, machine, and install graphite core blocks for commercial Generation IV reactors, facilities must hold specific ASME Section III certifications. Traditional metal components fall under standard N-type stamps, but nonmetallic core components made from graphite and structural ceramics require specialized accreditation:
- ASME "G" Certificate: Authorizes the design, construction, and certification of nonmetallic reactor core components.
- ASME "GC" Certificate: Authorizes the fabrication, machining, finishing, and shop assembly of nonmetallic core materials under ASME Section III, Division 5.
Zachry Group became the first company globally to achieve ASME certification for nonmetallic core components (graphite and ceramics) under these advanced rules. Fabricators holding these certifications must demonstrate complete nuclear quality assurance under ASME NQA-1, encompassing material handling, precision multi-axis machining, dust containment, and dimensional verification.
Chemical Purity and Equivalent Boron Concentration Thresholds
The defining technical boundary between industrial graphite and nuclear-grade material lies in trace elemental purity. Graphite placed inside a reactor core must possess a low neutron absorption cross-section to maintain the neutron economy required for fission. Trace contaminants—most notably boron, cadmium, and lithium—act as parasitic neutron absorbers that degrade reactor efficiency.
ASTM C1233-98 standardizes the determination of equivalent boron content in graphite. The Equivalent Boron Concentration (EBC) calculation weights each trace impurity according to its specific neutron capture cross-section relative to boron.
| Parameter | Standard Industrial Graphite | Nuclear-Grade Structural Graphite | High-Purity Auxiliary Graphite (Seals/Lubricants) |
|---|---|---|---|
| Total Carbon Content | 95.0% – 99.0% | $ge$ 99.999% (5N Purity) | 99.8% – 99.85% |
| Ash Content | 0.5% – 5.0% | $le$ 100 ppm | $le$ 0.1% – 0.5% |
| Equivalent Boron (EBC) | Not controlled (>50 ppm) | < 2.0 – 5.0 ppm | Application specific (< 10 ppm) |
| Total Halogens (Cl, F) | Variable (>1,000 ppm) | $le$ 30 ppm | $le$ 30 – 100 ppm |
| Total Sulfur | Up to 5,000 ppm | $le$ 100 ppm | $le$ 200 – 300 ppm |
| Embrittling Metals | Uncontrolled | < 10 ppm aggregate | < 25 – 150 ppm (Pb, Bi, Sn, Zn, Hg) |
In auxiliary components such as packings and dry lubricants, limiting halogens, sulfur, and low-melting-point embrittling metals (lead, bismuth, tin, zinc, and mercury) is vital to prevent stress corrosion cracking in stainless steel and nickel-alloy primary piping.
Multifunctional Reactor Roles: Moderation, Reflection, and Containment
Graphite plays diverse operational roles across advanced reactor designs. In High-Temperature Gas-Cooled Reactors (HTGRs) and pebble-bed reactors, it serves simultaneously as a neutron moderator to slow fast neutrons, a neutron reflector to bounce stray neutrons back into the core, and the structural skeleton housing fuel channels and helium coolant paths. In molten salt reactors, graphite stringers provide core moderation while remaining in direct contact with hot fluoride salts.
Understanding these mechanisms across specialized sectors is vital, as outlined in our review of industrial applications nuclear industry applications. Furthermore, managing isotopic buildup requires close attention to raw material chemistry, a subject detailed in DOE research on graphite impurity management.
Core Structural Mechanics Across Advanced Gen IV and Fusion Systems
In prismatic HTGRs, fuel consists of Tri-structural Isotropic (TRISO) particles embedded within graphite matrix compacts, which are then loaded into large hexagonal graphite blocks. Helium flows through parallel coolant channels at operating temperatures between 750°C and 850°C.
Under intense fast-neutron irradiation, graphite undergoes a complex physical transformation. Displaced carbon atoms cause graphite crystallites to contract along the basal plane and expand perpendicular to it. Macroscopically, graphite blocks initially shrink in volume. As irradiation accumulates, microcracking develops, leading to a phenomenon known as dimensional turnaround, where the material ceases shrinking and begins to expand volumetrically. Structural graphite must be engineered to resist premature turnaround and accommodate irradiation creep. In experimental fusion reactors, graphite and carbon-carbon composites serve in plasma-facing divertors to withstand extreme localized heat flux, though engineers must manage plasma erosion and tritium retention.
Auxiliary Applications in Nuclear Seals and Lubricants
Beyond large structural core bricks, graphite is widely deployed in nuclear-grade auxiliary components. Reactor mechanisms, control rod drives, valves, and primary coolant pump flanges operate under severe temperatures and ionizing radiation where organic greases break down.
In these environments, colloidal graphite suspensions and dry film lubricants provide boundary lubrication without decomposing or seizing. Fasteners and threaded fittings require certified anti-seize pastes that prevent galling while eliminating contaminants like copper, lead, and sulfur that can poison catalytic recombiners or crack alloy studs. For detailed maintenance strategies, review our guide to slick science and the ultimate guide to lubricant in nuclear reactors as well as our analysis of nuclear sealants the unsung heroes of reactor containment. Auxiliary compounds must meet standards such as MIL-PRF-907F and naval reactor purity controls to ensure long-term structural reliability.
Supply Chain Scaling, Sourcing, and Dual-Use Regulatory Controls
The global expansion of Small Modular Reactors (SMRs) and advanced microreactors has intensified pressure on the specialized graphite supply chain. According to comprehensive advanced nuclear supply chain analysis, the manufacturing capacity for nuclear-grade synthetic graphite billets remains concentrated among a limited number of global suppliers.
Because graphite with an EBC under 5 ppm can be used to moderate natural-uranium plutonium production reactors, it is classified as a dual-use material. In the United States, exports and transfers of nuclear-grade graphite are strictly regulated by the Nuclear Regulatory Commission under 10 CFR 110.2, alongside International Atomic Energy Agency (IAEA) safeguards. Meanwhile, industrial-grade graphite falls under Department of Commerce export controls.
To meet rising demand, advanced reactor developers are expanding domestic and allied manufacturing infrastructure. X-energy, for instance, established a framework agreement with SGL Carbon, investing up to $8 million in facility and equipment upgrades at Chedde, France, to double the production capacity of medium-grain isotropic NBG-18 graphite billets—supporting up to eight Xe-100 reactors per year—with downstream precision machining handled in the United States.
Synthetic vs. Purified Natural Flake Graphite
Historically, nuclear-grade graphite has been synthesized using petroleum or pitch coke fillers blended with coal tar pitch binders, followed by graphitization above 2,800°C. However, advanced thermal refining has opened pathways for high-purity natural flake graphite:
- Synthetic Isotropic Graphite: Grades like NBG-18 and IG-110 offer uniform multidirectional physical properties and predictable irradiation turnaround behavior, making them the standard choice for primary core structures.
- Purified Natural Graphite: Natural graphite deposits, such as Focus Graphite’s Lac Knife project, have achieved 99.9992 wt.% C (5N purity) with an EBC below 2 ppm using high-temperature thermal purification (2,800°C) without halogen gas treatments. Natural graphite meeting these specifications can command $30,000 to $35,000 per tonne, providing an alternative feedstock for specialty nuclear components, pebble fuel matrices, and energy storage systems.
Supply Traceability Protocols in the Certified Graphite Nuclear Industry
To satisfy nuclear quality assurance programs under 10 CFR 50 Appendix B and ASME NQA-1, suppliers of graphite materials and lubricants must maintain unbroken chain-of-custody documentation. Every batch must include a Certified Material Test Report (CMTR) validating:
- Quantitative trace element assays (measuring boron, cadmium, halogens, sulfur, and heavy metals via ICP-OES or glow discharge mass spectrometry).
- Physical density, tap density, and grain size distribution metrics.
- Heat and batch lot numbers tied to specific raw material calcining and graphitization runs.
- Certificate of Conformance to applicable military or commercial specifications (e.g., MIL-L-24131C).
Material Aging, In-Service Inspection, and Decommissioning Management
Graphite components within a reactor core operate in an environment of elevated temperatures, intense neutron flux, and active coolants (helium, carbon dioxide, or molten salts). Over multi-decade operating lifespans, two primary aging mechanisms govern graphite integrity: irradiation damage and oxidation.
In gas-cooled reactors, trace moisture or air ingress leads to thermal and radiolytic oxidation. Oxidation consumes carbon atoms, generating internal porosity that reduces mechanical strength and thermal conductivity. Industry standards establish that once graphite experiences a 10% mass loss from oxidation, its structural integrity is considered compromised due to the heightened risk of crack initiation and propagation.
To manage aging, plant operators implement programs under ASME Reliability and Integrity Management (RIM) and nuclear industry guidelines such as NEI 03-08.
Non-Destructive Evaluation and Damage Mechanisms
Monitoring graphite cores requires specialized in-service inspection (ISI) and non-destructive examination (NDE) methods:
- Visual and Channel Bore Gauging: Automated robotic inspection tools travel through fuel and control rod channels to map channel straightness, brick distortion, and gap closures caused by irradiation-induced swelling.
- Eddy Current and Ultrasonic Testing: Used to identify subsurface Mrozowski microcracks—cracks formed along graphite basal planes during cool-down after graphitization—and track their propagation under cyclic thermal stresses.
- Surveillance Coupon Monitoring: Removable graphite test specimens placed in high-flux core zones are periodically extracted to measure changes in Young's modulus, thermal diffusivity, and electrical resistivity.
During reactor maintenance, thermal cycling can sometimes trigger radiation annealing, a process where elevated temperatures allow displaced interstitial carbon atoms to recombine with lattice vacancies, partially restoring the material's original physical properties.
Radioactive Waste Classification and Carbon-14 Mitigation
Decommissioning graphite-moderated reactors presents unique waste management challenges. Irradiated graphite contains long-lived radionuclides generated by neutron activation of trace impurities within the raw material:
- Carbon-14 ($^{14}text{C}$): Produced predominantly via the $^{14}text{N}(n,p)^{14}text{C}$ reaction from residual nitrogen trapped in the graphite pores, as well as the $^{13}text{C}(n,gamma)^{14}text{C}$ reaction from natural carbon. Nitrogen-14 has a high thermal neutron capture cross section (1.82 barns), making nitrogen control critical during manufacturing.
- Chlorine-36 ($^{36}text{Cl}$): Created from residual chlorine used during chemical gas purification, possessing a half-life of over 300,000 years.
To prevent irradiated graphite from exceeding U.S. NRC Class C low-level waste limits (8.0 $text{Ci/m}^3$ for $^{14}text{C}$) and being reclassified into the far more expensive Greater-than-Class-C (GTCC) category, modern nuclear graphite procurement specifications mandate bulk nitrogen concentrations below 1 to 2 appm and chlorine levels below 1 appm. Staging irradiated blocks post-shutdown allows short-lived isotopes like tritium ($^3text{H}$) and Cobalt-60 ($^{60}text{Co}$) to decay before final geological disposal processing.
Frequently Asked Questions about Nuclear Graphite Certification
What distinguishes nuclear-grade graphite from high-purity industrial graphite?
While high-purity industrial graphite may boast 99% or higher carbon content, nuclear-grade graphite requires ultra-high purity ("five-nines" or 99.999% C) and an Equivalent Boron Concentration strictly below 2 to 5 ppm measured under ASTM C1233-98. This prevents parasitic neutron absorption in the reactor core. It must also have strict limits on halogens, sulfur, and embrittling metals to prevent stress corrosion in neighboring alloy components.
What export controls govern the procurement of nuclear graphite?
Nuclear-grade graphite is a dual-use material subject to non-proliferation export controls. In the United States, graphite intended for nuclear end-use with an EBC under 5 ppm is regulated by the Nuclear Regulatory Commission under 10 CFR 110.2. Exporting or transferring certified nuclear graphite requires specific licensing and compliance tracking to prevent diversion into unsafeguarded nuclear fuel cycles.
How do reactor operators inspect irradiated graphite core components?
Operators utilize robotic in-service inspection platforms equipped with high-resolution visual cameras, eddy current probes, and channel bore profilometry tools. These systems measure bore diameter, component tilt, brick cracking, and keyway root stresses. Operators also extract pre-installed surveillance graphite coupons during refueling outages to test for changes in density, strength, and oxidation mass loss.
Conclusion
Procuring graphite for nuclear service demands verification at every stage of the supply chain. Whether qualifying isotropic billets under ASME Section III, Division 5 or sourcing specialized colloidal graphite suspensions for critical reactor mechanisms, nuclear engineers must demand total batch traceability, validated chemical assays, and proven resistance to high-temperature degradation.
At Huron Industries Inc., we manufacture certified graphite lubricants, sealants, and boundary coatings designed for the most demanding operating environments. Our Neolube® product line has earned the trust of commercial and naval nuclear programs by maintaining strict quality controls, verified purity, and compliance with military specifications like MIL-L-24131C. Explore our technical solutions through our guide on Neolube reactor applications and high temperature specifications, or discover our precision ammunition reloading solutions via CaseLube. Partner with qualified suppliers who understand that in nuclear engineering, material pedigree is the foundation of plant safety.
