Why Neolube Case Lubricant Matters for Precision Reloading
Neolube case lubricant is a fast-drying liquid graphite coating used on the inside of clean brass case necks before mandrel expansion and bullet seating. It leaves a very thin, dry graphite film that lowers friction without the oily residue of traditional wet lubricants.
| Quick answer | What to know |
|---|---|
| What it is | Processed micro graphite and thermoplastic resin in an isopropanol carrier |
| Primary reloading use | Interior case-neck lubrication for smoother expanding and more repeatable bullet seating |
| Drying time | About 5 minutes to touch-dry; allow about 30 minutes before loading operations |
| What to buy | NEOLUBE No. 2 is available in small bottles for bench use and larger containers for higher-volume work |
| Key safety point | The carrier is flammable; use ventilation and keep it away from sparks, heat, and open flame |
For buyers who need a high-purity, dry-film lubricant, the value is simple: a controlled graphite layer helps reduce variation caused by inconsistent neck friction. NEOLUBE No. 2 is also a QPL-listed colloidal graphite lubricant designed for demanding industrial environments, while its thin-film behavior makes it useful for careful case preparation.
I am Nicholas Cunha, and I help Huron Industries turn technical colloidal-graphite specifications into clear sourcing guidance for industrial and precision-reloading buyers. My work on Neolube case lubricant content focuses on connecting product properties, safe handling, and real purchasing needs before we compare the available options.
What is Neolube No. 2 and How Does Colloidal Graphite Work?
When I explain colloidal graphite to reloaders and engineers, I start with the core physics of friction reduction. NEOLUBE® No. 2 is an exceptionally stable dispersion of processed micro graphite and a thermoplastic resin binder suspended in a volatile isopropanol solvent carrier.
Graphite is a crystalline form of carbon where atoms are arranged in six-membered hexagonal rings forming flat, two-dimensional sheets. The bonds within each sheet are extraordinarily strong, but the bonds between adjacent sheets are weak van der Waals forces. Under compression and sliding forces, these micro-scale graphite platelets readily shear and slide past one another.

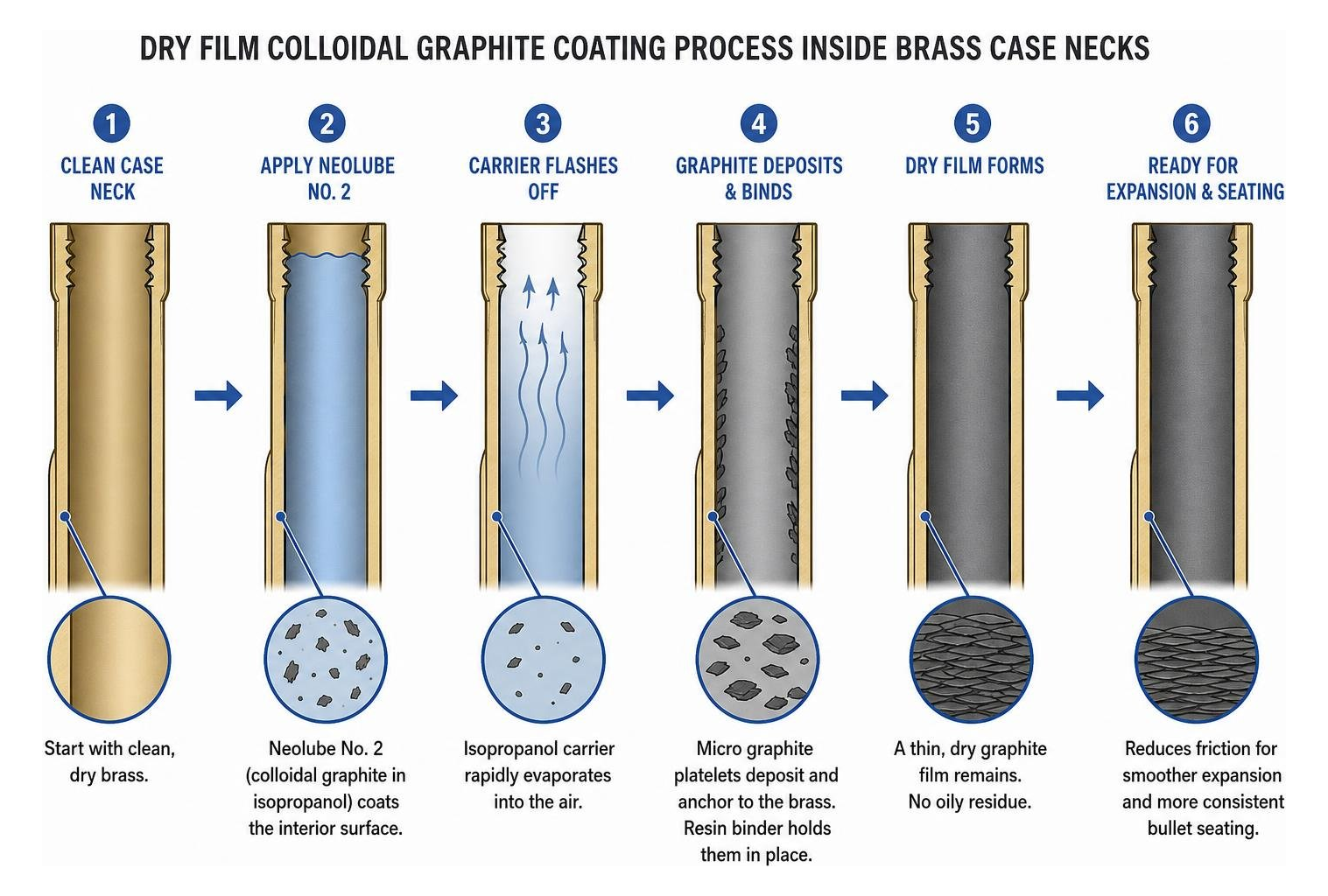

When you apply Neolube case lubricant to an interior case neck, the volatile isopropanol carrier rapidly flashes off into the atmosphere. What remains is an ultra-thin, highly adherent dry film of micro-graphite platelets held together by the thermoplastic binder. Because it is a dry film rather than a wet fluid, it provides smooth boundary lubrication without capturing ambient dust, grit, or unburnt powder grains.
For more technical details on how this dry film functions specifically within cartridge brass, you can read our guide on Technical Notes: Neolube No. 2 for Lubricating Internal Case Necks or review the primary manufacturer sheet at NEOLUBE® NO. 2 LUBRICANT - COLLOIDAL GRAPHITE IN ISOPROPANOL - NEOLUBE® Industrial Dry Lubricants .
Understanding Neolube Case Lubricant Composition and Purity
One of the defining features of NEOLUBE No. 2 is its heritage in the nuclear energy sector. Developed and manufactured to satisfy stringent nuclear reactor specifications (such as MIL-L-24131C standards for colloidal graphite formulations), NEOLUBE No. 2 maintains exceptional chemical purity:
- Solids Content by Weight: 3.30% to 3.70% micro-fine graphite and resin binder.
- Particle Size: Pure furnace graphite processed down to sub-micron dimensions (typically with 90% under 4 microns and an absolute maximum under 10 microns).
- Halogen Limits: Restricted to a maximum of 200 ppm total halogens (Fluorine capped at 75 ppm max, Chlorine capped at 200 ppm max).
- Sulfur Restrictions: Capped at 900 ppm maximum.
- Heavy Metals: Formulated strictly without the addition or presence of mercury, lead, antimony, zinc, or cadmium to prevent stress-corrosion cracking in high-stress alloys.
- Physical Characteristics: Liquid density of 6.6 lbs/gal (0.8 kg/l), a flash point of 52°F (11.11°C) measured via Pensky-Martens Closed Tester, and a Volatile Organic Compound (VOC) rating of 766 g/l.
When cured on a substrate, the typical dry film thickness ranges between 0.2 and 0.5 mil (5 to 12 microns). That micro-thin layer is critical for ammunition reloaders. It ensures that adding a lubricant layer will not artificially alter the internal neck diameter or change calibrated bullet seating depths.
Why Precision Reloaders Choose Neolube Case Lubricant
In precision handloading, consistency is everything. When you pull an expander ball or push an expander mandrel through a freshly sized brass case neck, brass-on-steel friction can cause neck stretching, uneven wall thickness, or chatter. Later, during bullet seating, dry bare brass can gall against bullet jackets, resulting in erratic seating force.
By utilizing Neolube case lubricant, reloaders achieve several measurable benefits:
- Consistent Neck Tension: Friction directly influences the effective grip the brass neck exerts on the bullet. By smoothing out micro-asperities on the inner brass wall, seating force becomes uniform from round to round.
- Reduced Velocity Extreme Spread (ES) and Standard Deviation (SD): Inconsistent release forces during ignition cause small variations in chamber pressure build-up before the bullet releases from the neck. Uniform friction helps stabilize muzzle velocities across target strings. For a deep dive into this relationship, see our technical article on Case Neck Friction & Extreme Spread.
- Smooth Mandrel Expansion: Mandrel sizing requires smooth mechanical travel. A dry graphite coating allows expander mandrels to enter and exit case necks smoothly without galling or binding.
- Visual Verification: Unlike clear waxes or invisible dry oils, liquid graphite coats brass with a dark wet layer that dries to a distinct matte gray finish. You can tell at a glance whether 100% of the internal neck surface is properly coated.
Top Performance Benefits of Neolube Case Lubricant
The cured dry film of NEOLUBE No. 2 exhibits an exceptionally low static coefficient of friction of approximately 0.19 (with functional sliding friction ranging between 0.030 and 0.090 depending on load). Furthermore, because the carrier is pure isopropanol, it leaves zero oily or greasy residue once fully dry.
Thermal stability is another key strength. The continuous service temperature range spans from -70°F to 400°F (-57°C to 204°C). Although the thermoplastic resin binder begins to decompose gently around 200°F (93°C), the remaining pure dry graphite continues to provide boundary lubrication up to 400°F continuous, and up to 850°F (454°C) under intermittent exposure.
Additionally, cured graphite provides static dissipation properties, exhibiting a sheet resistance of less than 2,400 ohms/sq at a 1 mil dry film thickness. In reloading rooms, this eliminates static electricity buildup inside case necks that might otherwise cause fine smokeless powder kernels to stick to the inner neck walls.
Here is a direct comparison of how liquid colloidal graphite compares against traditional dry mica and sizing waxes:
| Feature / Attribute | Liquid Colloidal Graphite (NEOLUBE No. 2 / CaseLube™) | Dry Mica Powder | Petroleum Sizing Wax / Wet Oils |
|---|---|---|---|
| Form & Carrier | Sub-micron graphite in volatile Isopropanol | Dry loose mineral powder | Heavy paste, wax, or liquid oil |
| Coating Uniformity | Excellent (self-leveling liquid coats 100% of surface) | Fair (powder clings unevenly due to static) | Good (but prone to uneven heavy buildup) |
| Powder Contamination Risk | Zero once solvent is completely dried | Low (loose dust can drop into powder charge) | High (wet oil/wax can deaden powder kernels) |
| Static Dissipation | Excellent (<2400 ohms/sq) | Poor (can increase static cling) | Neutral |
| Visual Coverage Indicator | High (turns from glossy black to matte gray) | Low (white/translucent dust is hard to inspect) | Low (clear or semi-translucent film) |
| Coefficient of Friction | Very Low (~0.19 static) | Moderate | Very Low |
| Residue / Mess | Clean dry film; wipes off easily with dry patch | Airborne dust hazard on reloading bench | Greasy residue requiring solvent washing |
Proper Application, Drying Time, and Safety Guidelines
Applying liquid graphite efficiently requires the right tools and a tidy approach. I always tell handloaders: a little goes a very long way! Applying thick, heavy coats does not increase lubricity and only slows down drying time.
For full step-by-step instructions, explore our guide on How to Apply Liquid Graphite to Case Necks.
When preparing your bench:
- Work in a well-ventilated space away from open flames, pilot lights, or electrical sparks. Isopropanol has a low flash point of 52°F (11.11°C).
- Transfer a small amount of liquid graphite from your main supply into a secondary container (such as a small wide-mouth glass vial or cap).
- To prevent accidental tipping of lightweight vials, nest the secondary container inside the center core of a heavy roll of painter's tape on your bench!
Step-by-Step Method to Treat Case Necks and Projectiles
Follow this proven workflow to treat your brass and bullets:
- Clean Your Brass: Start with deprimed, thoroughly cleaned brass cases. Ensure all tumbling media, moisture, and sonic cleaning solvents are removed.
- Charge Your Applicator: Dip a high-density, lint-free foam swab (such as a polyurethane micro-swab) or a caliber-specific felt pellet into your secondary liquid graphite container. Wipe off excess liquid on the rim of the container.
- Coat the Interior Neck: Insert the swab into the case neck and rotate 360 degrees. You only need to treat the top two-thirds of the inside neck wall where the bullet bearing surface contacts the brass. Avoid pushing liquid down into the flash hole or powder chamber.
- Optional Projectile Treatment: You can also lightly treat the bearing surface of projectiles! Rolling bullets over a foam pad lightly charged with liquid graphite coats the bearing surface with a dry micro-film, further dampening seating force spikes.
- Allow Solvent Flash-Off: Place treated brass mouth-up or mouth-down in a loading block. Allow the carrier to evaporate completely. Touch-dry condition occurs in about 5 minutes, while full cure for heavy mechanical operations takes approximately 30 minutes.
To review precise chemical properties, cure times, and technical specs, inspect our CaseLube Technical Data Sheet.
Common Pitfalls and How to Handle Lubricants Safely
While Neolube case lubricant is simple to use, avoiding a few common errors will give you the best results:
- Dipping Case Necks Directly: Do not dip whole case necks directly into the bottle! Direct dipping deposits excess liquid on the exterior brass wall and risks running fluid down inside the case body.
- Loading Powder While Wet: Never drop smokeless powder charges or seat primers while the coating is wet black. Liquid isopropanol can damp powder or deaden primer pellet compounds. Wait until the film changes to a dull, matte gray finish.
- Cross-Contamination: Re-dipping dirty swabs into your main supply bottle can introduce brass shavings and carbon. Always work out of a secondary container and discard swabs once they show wear (typically every 100 cases).
- Spill Management: Dry graphite on hands or non-porous surfaces wipes away with isopropyl alcohol or warm soapy water. However, liquid spills on carpet or unfinished wood are difficult to remove.
For complete bench management tips, read How to Handle CaseLube Safely Without Making a Mess.
Product Options, Container Sizes, and Ordering Availability
At Huron Industries Inc., we manufacture and supply specialty graphite formulations engineered for both high-tech defense applications and precision reloading benches.
When purchasing colloidal graphite case lubricants, options exist for various volume requirements:
- 2 oz (60 mL) Bottle: Ideal for individual precision reloaders, wildcatters, and benchrest shooters. A single 2 oz bottle treats thousands of cartridge case necks when applied with micro-swabs.
- 8 oz (240 mL) Bottle: Designed for high-volume reloaders, commercial reloaders, and competitive shooting teams who prep large batches of brass.
- 1-Gallon Containers & Industrial Sizes: Offered in our NEOLUBE® No. 2 product line for nuclear facilities, industrial manufacturing plants, and OEM thread-treatment operations requiring full QPL compliance under MIL-L-24131C.
Ready to outfit your bench? You can purchase direct from our catalog at CaseLube Liquid Graphite Case Neck Lubricant 2 oz Bottle.
Frequently Asked Questions About Case Neck Lubrication
Is liquid graphite safe for primers and smokeless powder?
Yes, absolutely—provided you allow the alcohol carrier to evaporate completely before charging cases. Once the isopropanol has flashed off, what remains is an inert, solid carbon dry film bound to the brass. Pure dry graphite does not react with nitrocellulose, nitroglycerin, or primer compounds. In fact, many smokeless powder manufacturers lightly glaze extruded powder grains with dry graphite during manufacturing to prevent static cling!
How does colloidal graphite differ from standard lock lubricants?
While consumer lock lubricants also contain graphite, their formulation is vastly different. Lock lubricants typically use broader, unrefined graphite particle sizes suspended in heavy hydrocarbon carriers like Stoddard solvent or mineral spirits. Stoddard solvent evaporates slowly, leaves petroleum residues, and can contaminate smokeless powder.
NEOLUBE No. 2 uses ultra-pure sub-micron graphite held in high-purity isopropanol with a specialized thermoplastic binder. It dries rapidly, adheres tightly to metal, and leaves zero wet hydrocarbon residue.
What is the required drying time before seating bullets?
Under standard room conditions (70°F / 21°C and moderate humidity), the alcohol carrier dries to the touch in approximately 5 minutes. For maximum adhesion and optimal boundary lubrication during mandrel sizing or bullet seating, allow 30 minutes of total drying time. You will know it is ready when the surface transforms from a wet, shiny black liquid to a uniform, dull matte gray film.
Conclusion
At Huron Industries Inc., we have spent decades manufacturing nuclear-grade dry lubricants, specialized anti-seize compounds, and thread sealants engineered to meet strict MIL-SPEC requirements. Managing friction in nuclear piping systems requires the same uncompromising attention to purity and consistency that precision reloaders demand at the bench.
By incorporating high-purity colloidal graphite into your brass prep, you eliminate erratic sizing drag, protect your expander mandrels, and establish repeatable bullet release forces round after round.
Upgrade your reloading prep today with our specialized CaseLube Liquid Graphite Case Neck Lubricant and experience the consistency that pure dry film technology delivers.
